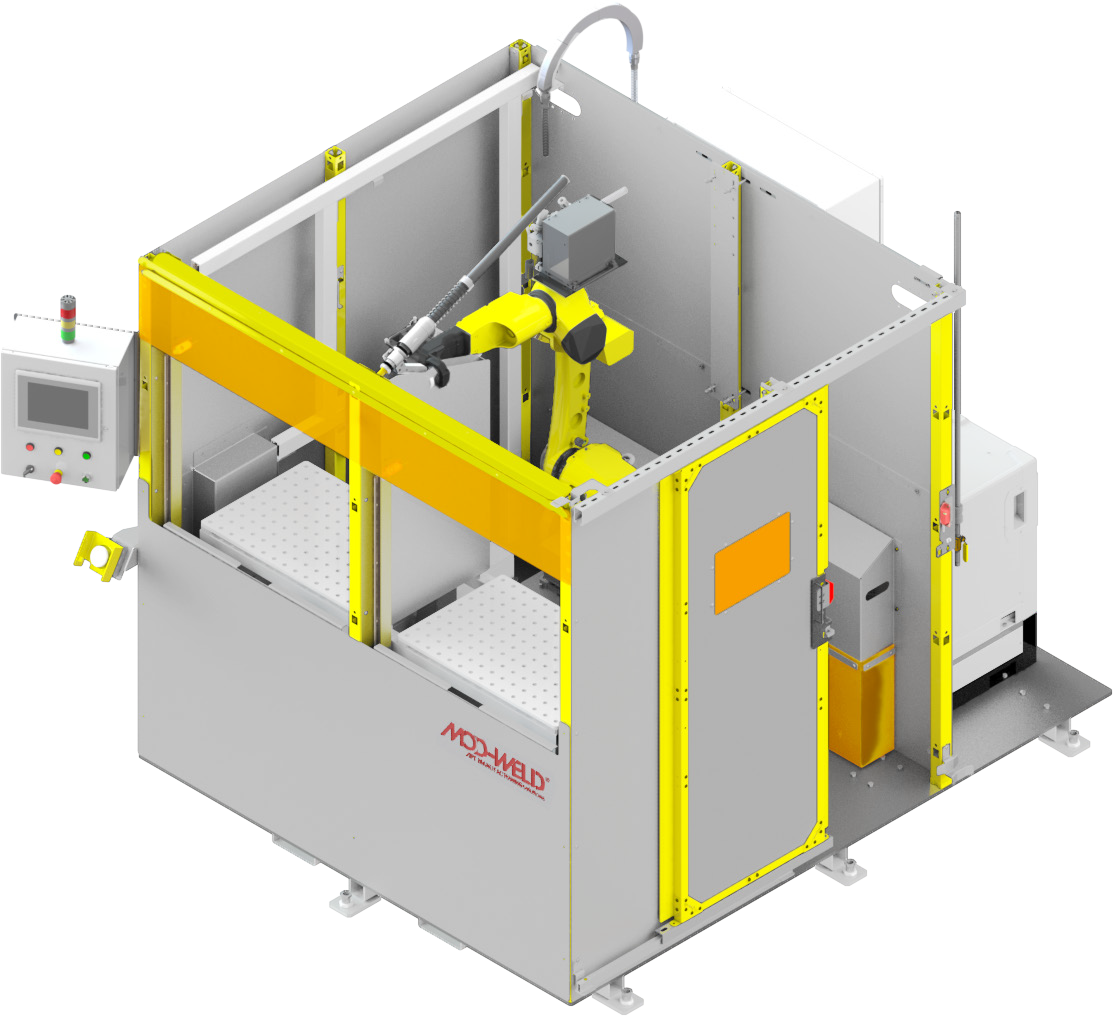

MOD-WELD Dual Station Fixed Table

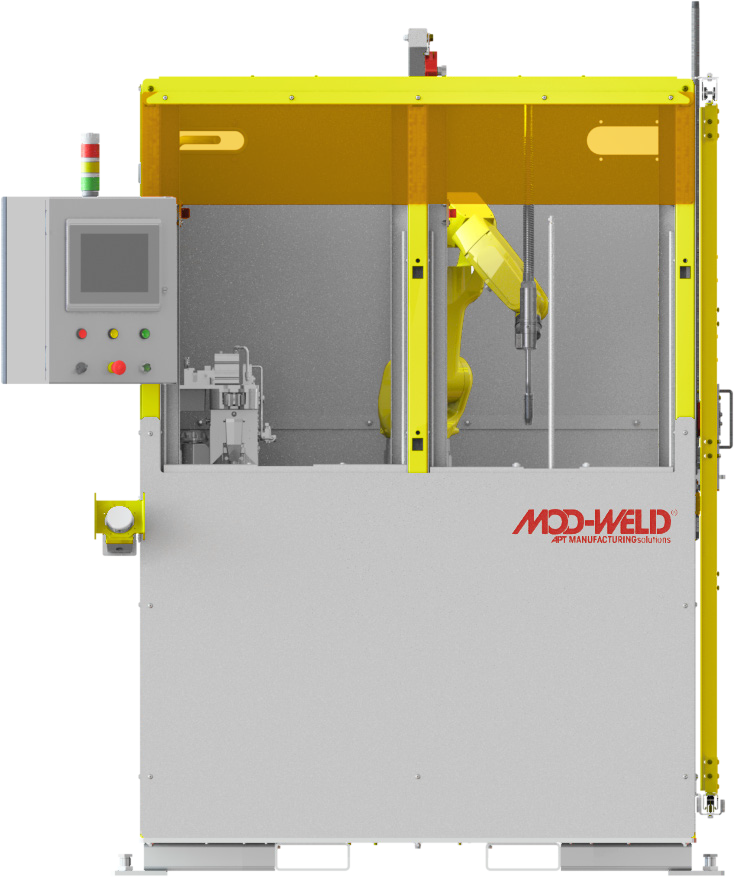

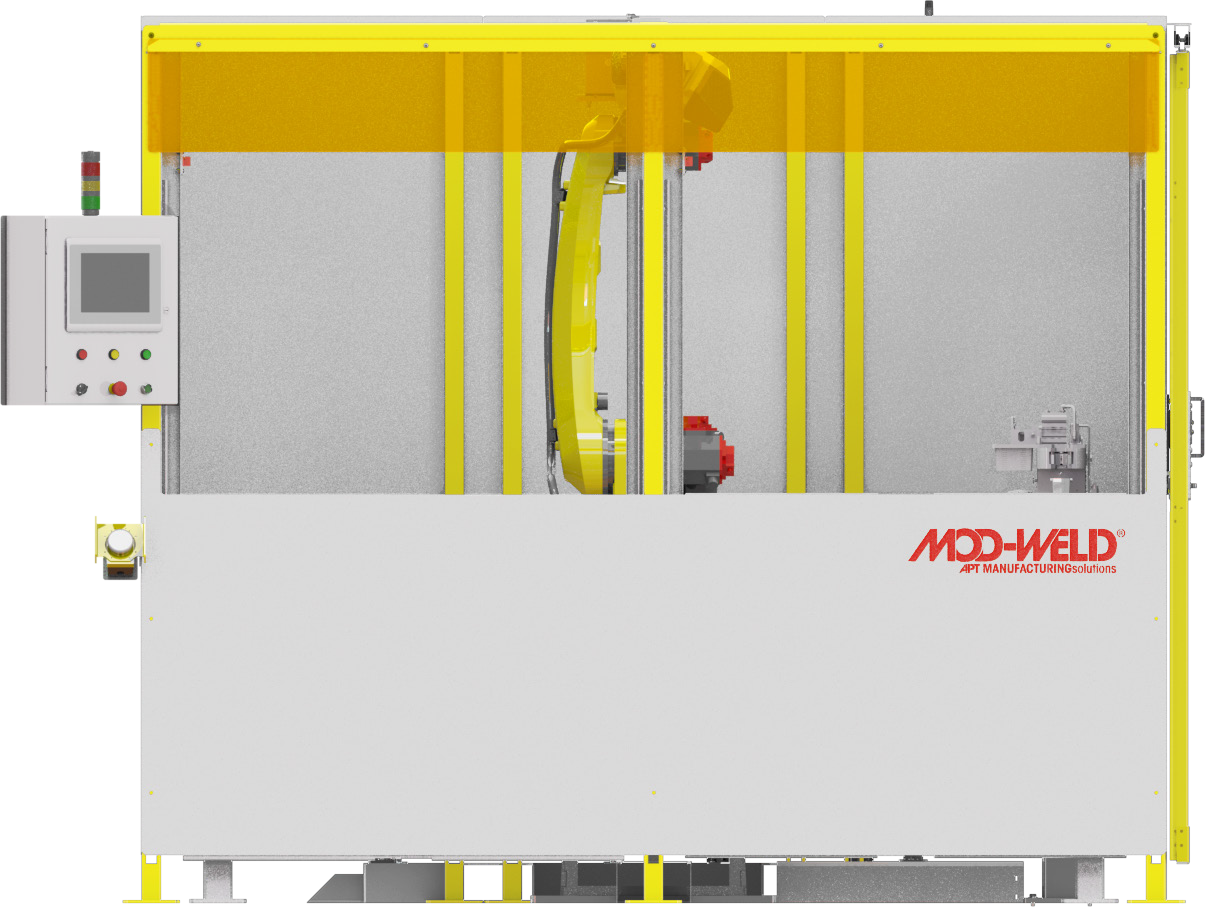

DSFT-48-AM50 / DSFT-72-AM100 / DSFT-96-AM120
The MOD-WELD® Dual Station Fixed Table from APT Manufacturing Solutions expands the simplicity of a fixed table system into a dual-station robotic welding workflow. Operators can load parts into fixtures while the robot works within the cell, helping improve productivity while maintaining a controlled process.
For education and workforce training programs, the Dual Station Fixed Table provides a clear transition from foundational robotic welding to production-style automation. Students can learn how dual work zones, fixtures, safety sequencing, and repeatability impact robotic welding performance.
This configuration is ideal for programs that want more throughput than a single-station system while keeping the workflow easy to understand and teach.
- Best for increasing throughput while maintaining a simple workflow.
- Supports dual work zones for improved productivity and training flexibility.
- Ideal for teaching fixture setup, safety sequencing, and repeatable robotic welding.
- Strong transition system between introductory robotic welding and production automation.
The Dual Station Fixed Table supports repeated, controlled workflows where weld consistency and simple operation are important to both training and productivity.
- Fronius TPS/i: Supports advanced process control and introduces students to precision robotic welding.
- Miller Auto-Continuum™: Provides dependable arc performance for repeatable training and light production workflows.
- Fronius LSC: Helps reduce spatter and improve weld seam consistency.
- Fronius CMT: Supports advanced welding concepts for specialized materials and applications.
- FANUC TPW: Supports touch sensing and through-arc seam tracking for adaptive robotic welding instruction.
- Tip reamer, nozzle spray, and wire snip system
- Additional Allen-Bradley I/O
- Laser seam finding and tracking
- FANUC iRVision for 2D and 3D part location
- Additional closed-center valve options
- Exhaust hood options available in select sizes
| System Model | DSFT-48-AM50 | DSFT-72-AM100 | DSFT-96-AM120 |
| 6-Axis Robot | ARC Mate 50iD | ARC Mate 100iD | ARC Mate 120iD |
| Robot Reach | 36" | 57" | 72" |
| Cell Footprint | 60" x 90" | 84" x 102" | 108" x 114" |
| Table Work Space | 2 @ 20" x 16" each | 2 @ 30" x 20" each | 2 @ 40" x 36" each |
| Available I/O | 8 in / 8 out | ||
| Valve Bank Space | (4) closed center / (4) blanks | ||
| Operator Interface | Rockwell PLC/HMI Interface | ||
| Table Hole Size | 16mm diameter, 2" x 2" hole pattern | ||
Need more throughput than a single-station cell but want to keep training straightforward? Tech-Labs can help determine whether the Dual Station Fixed Table fits your program.
