Air Filter Cutaway

Compressed-air filters help remove moisture, particles, oil, and other contaminants from air before it reaches pneumatic equipment. Proper filtration protects downstream components, improves system reliability, and reduces unnecessary maintenance.

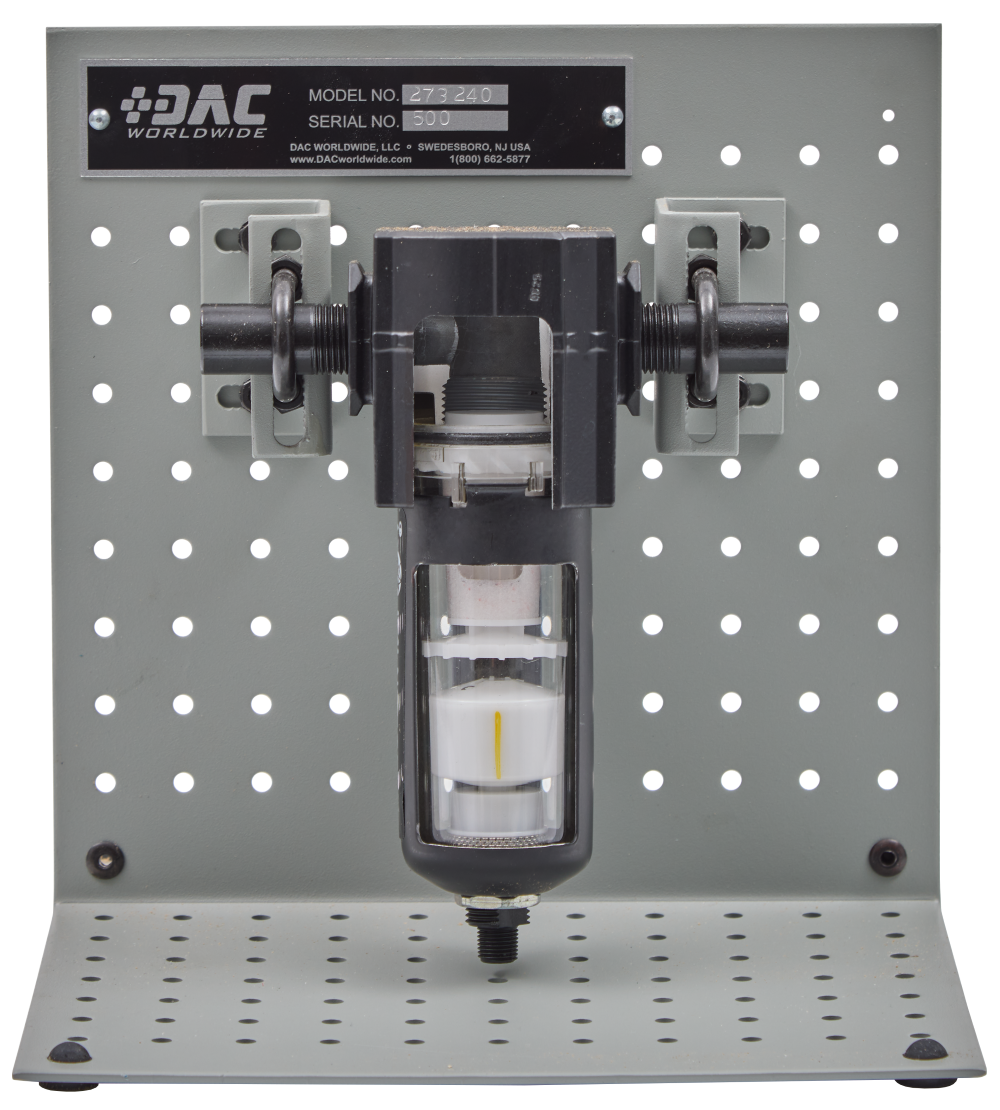

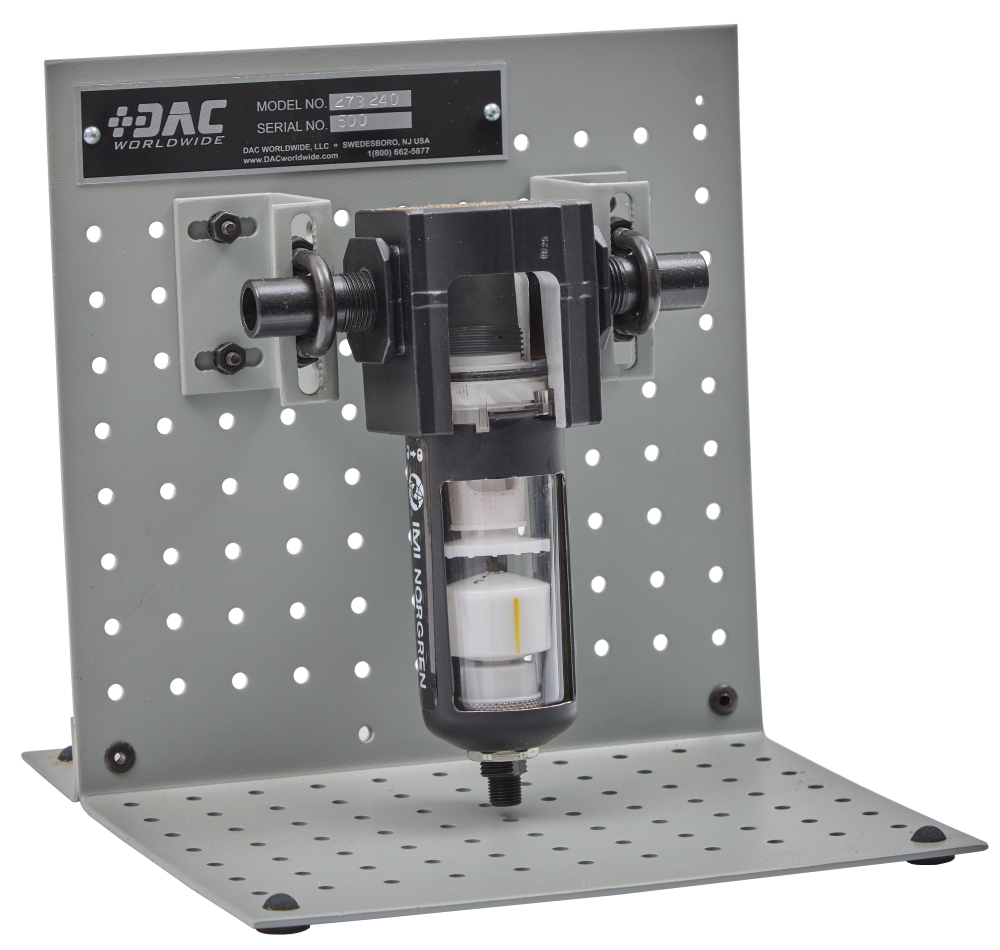

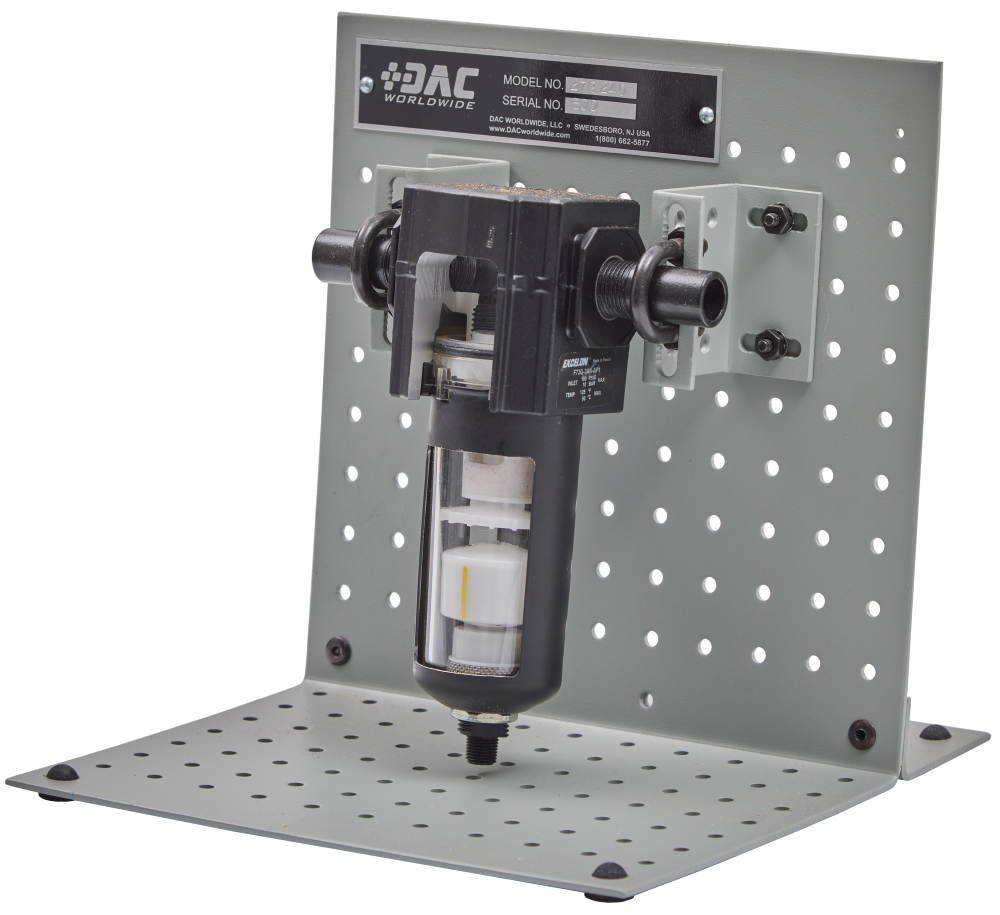

DAC Worldwide’s Air Filter Cutaway (273-240) is an actual industrial compressed-air filter that has been carefully sectioned to reveal its internal construction and operating principles.

The cutaway helps learners understand how air moves through a filter and how internal components separate and collect contaminants. Its realistic construction supports component identification and introductory training related to compressed-air preparation, pneumatic systems, inspection, and maintenance.

Explore Compressed-Air Filter Operation

Strategically selected cutaway areas expose components that would normally be hidden inside an assembled filter. Learners can trace the representative airflow path and examine how the filter element, housing, bowl, and drainage components work together to condition compressed air.

The sectioned component provides a clear, three-dimensional reference for instructor-led demonstrations and independent student exploration. It can supplement training in industrial maintenance, fluid power, pneumatics, process control, and manufacturing systems.

Professionally Prepared for Technical Training

The industrial component is cleaned and professionally sectioned to create a durable instructional aid. Cutaway surfaces are highlighted to make component boundaries, internal geometry, and operating relationships easier to recognize.

Features & Specifications

• Actual industrial compressed-air filter selected for training relevance.
• Professionally sectioned housing that exposes the internal configuration.
• Visible filtration and contaminant-collection components.
• Representative airflow path for studying filter operation.
• Highlighted cutaway surfaces for improved component visibility.
• Supports component identification, operation, inspection, and maintenance instruction.
• Suitable for pneumatic, fluid-power, process-control, and industrial-maintenance programs.
• Designed for instructor-led demonstrations and independent student exploration.
