HandySCAN 3D PRO Series

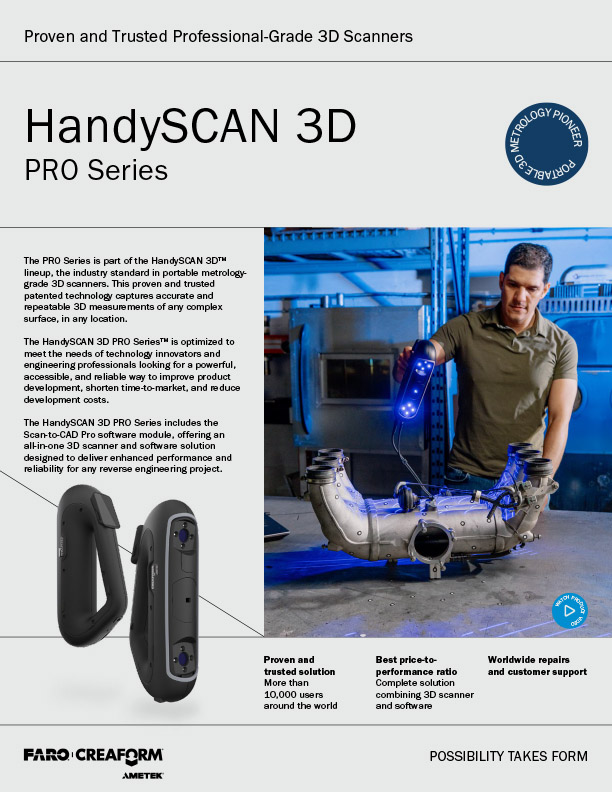

  • HandySCAN 3D PRO Series product brochure cover

Download the HandySCAN 3D PRO Series Brochure

A Professional 3D Scanner and Scan-to-CAD Solution

Discover how the Creaform HandySCAN 3D PRO Series combines portable 3D scanning with Scan-to-CAD Pro software to support a streamlined reverse-engineering workflow.

The HandySCAN 3D PRO is designed for engineers, product designers, manufacturers, educators, and researchers who need to capture physical parts and transform the resulting scan data into editable CAD models.

What Will You Find in the Brochure?

  • An overview of the HandySCAN 3D PRO Series
  • Current accuracy and volumetric accuracy specifications
  • Recommended part-size range and measurement capabilities
  • Scanner weight, laser configuration, and operating features
  • Details about the included Scan-to-CAD Pro software
  • An overview of the complete scan-to-CAD workflow
  • Applications for reverse engineering and product development

The HandySCAN 3D PRO Series includes Scan-to-CAD Pro, an advanced module within the Creaform Metrology Suite. Together, the scanner and software help users complete the essential stages of reverse engineering:

  1. Capture the geometry of the physical component.
  2. Edit and optimize the resulting polygon mesh.
  3. Align the scan data with the required coordinate system.
  4. Extract cross-sections and geometric features.
  5. Create two-dimensional sketches and three-dimensional models.
  6. Export or transfer the finished model into a compatible CAD platform.

The brochure includes current technical information for the professional-grade scanner, including:

  • Accuracy: Up to 0.030 mm (0.0012 in)
  • Volumetric accuracy: 0.020 mm + 0.060 mm/m
  • Light source: 23 blue laser lines
  • Recommended part size: 0.05 to 4 m (0.15 to 13.1 ft)
  • Scanner weight: 920 g (2.0 lb)
  • Included software: Scan-to-CAD Pro
Download
  • HandySCAN 3D PRO Series
    Explore the Creaform HandySCAN 3D PRO Series, a professional portable 3D scanner with Scan-to-CAD Pro for reverse engineering and product development.
