AC Electronic Drive Training

Amatrol FaultPro
Advanced Manufacturing
Electronics Trainers
Item Number:
970-DRV1F
AC Variable Frequency Drive Skills

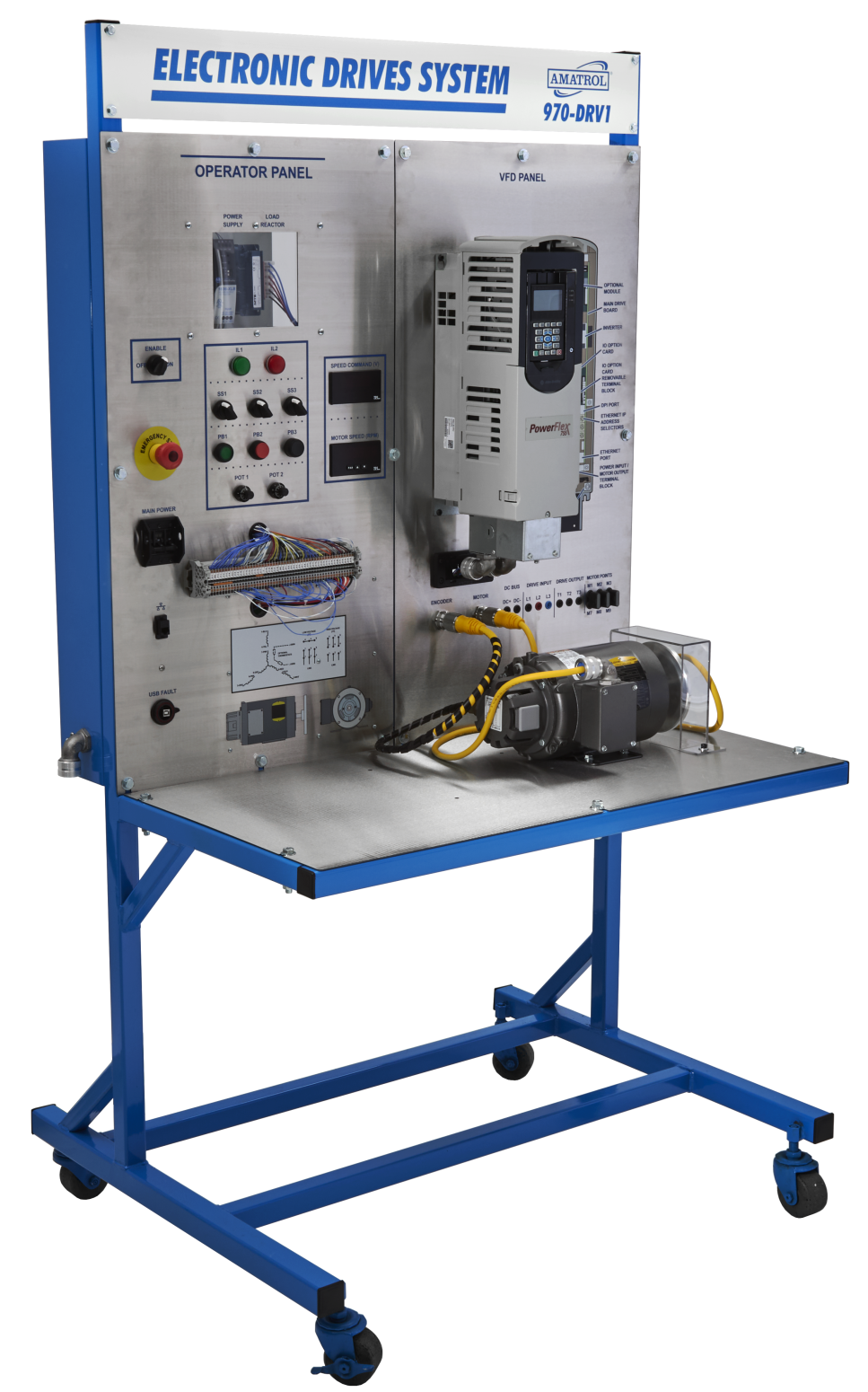

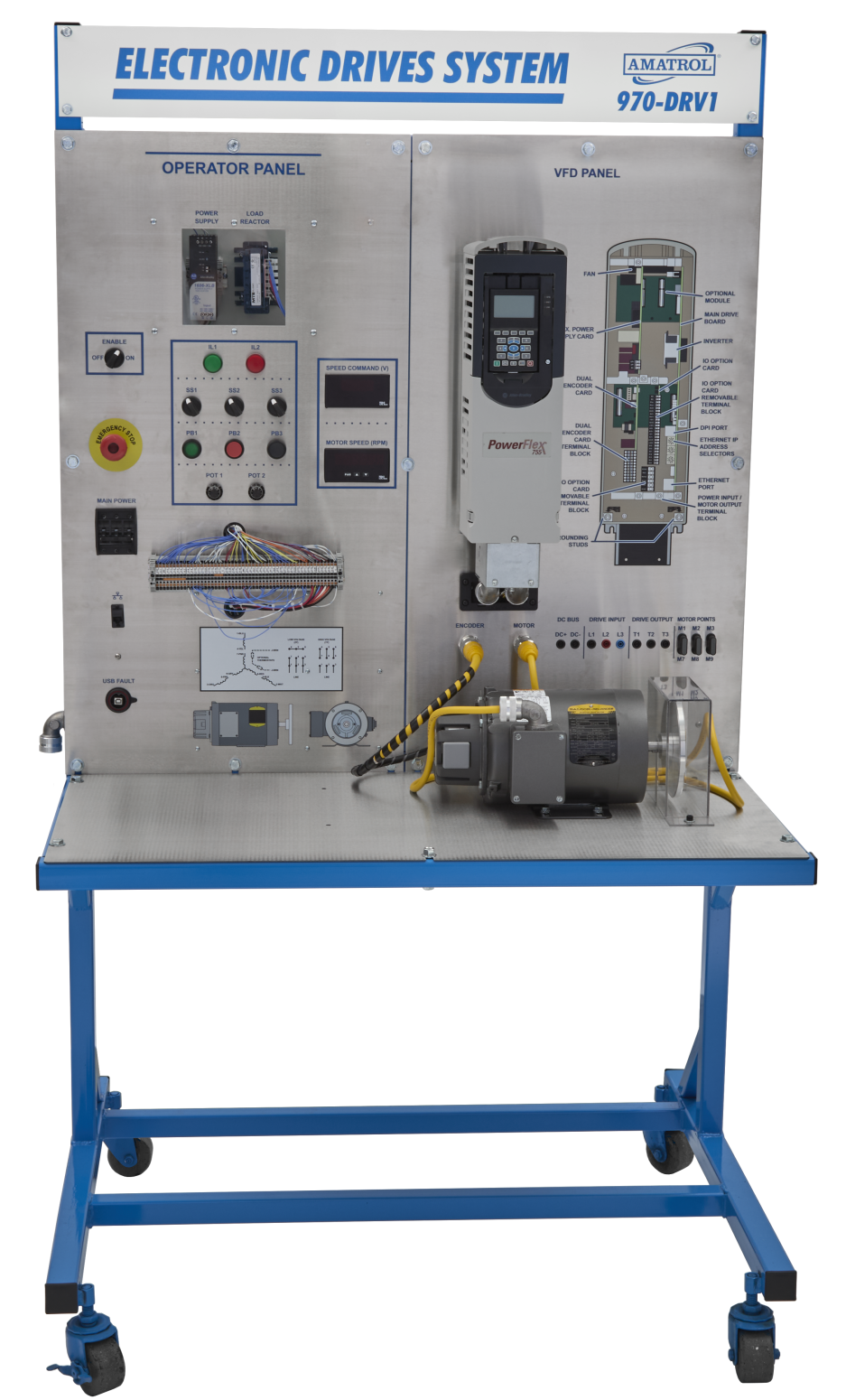

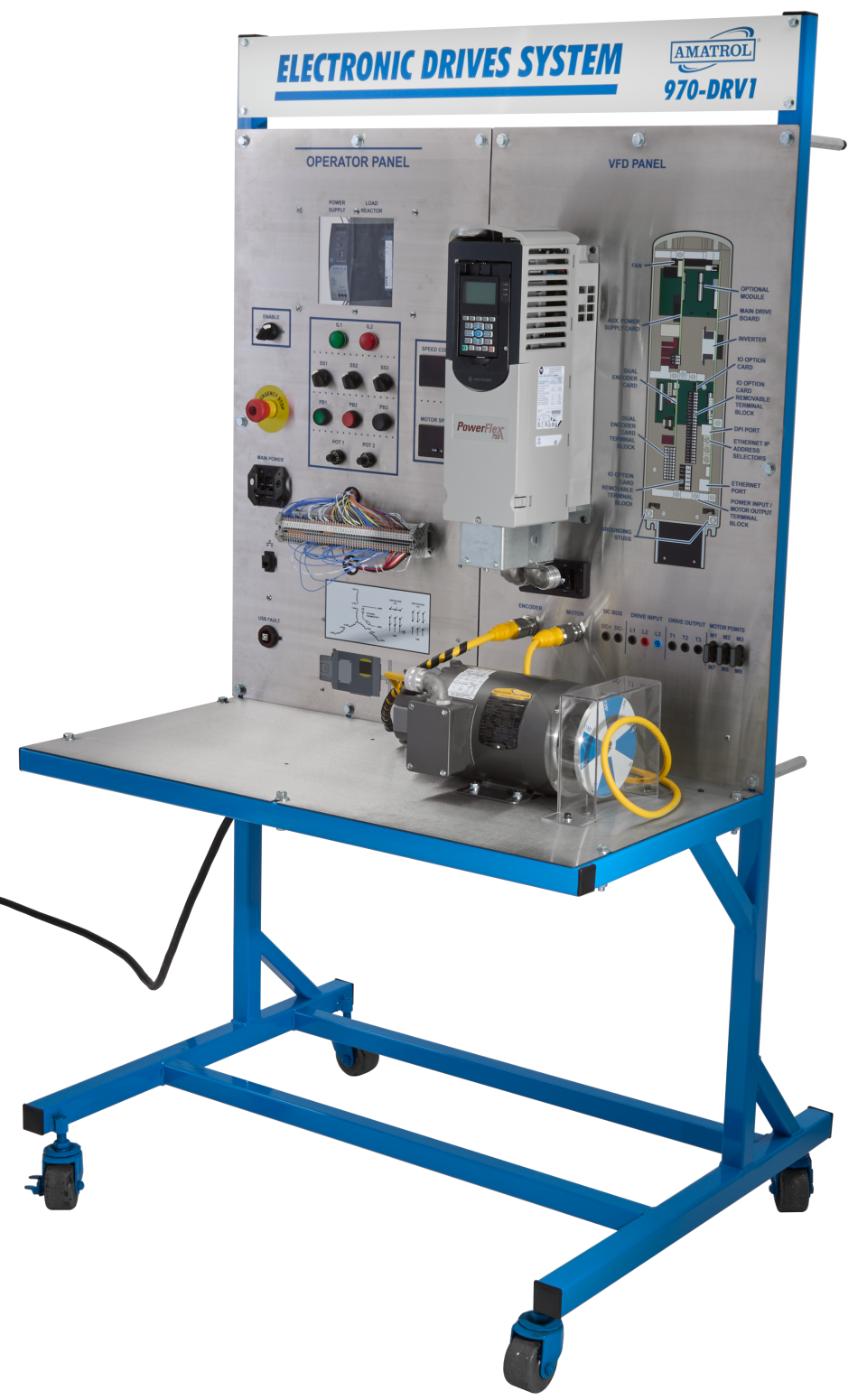

Amatrol 970-DRV1F AC Electronic Drive Training System front view
FaultPro computer-based fault insertion interface
Allen-Bradley PowerFlex 755 VFD mounted in Amatrol trainer

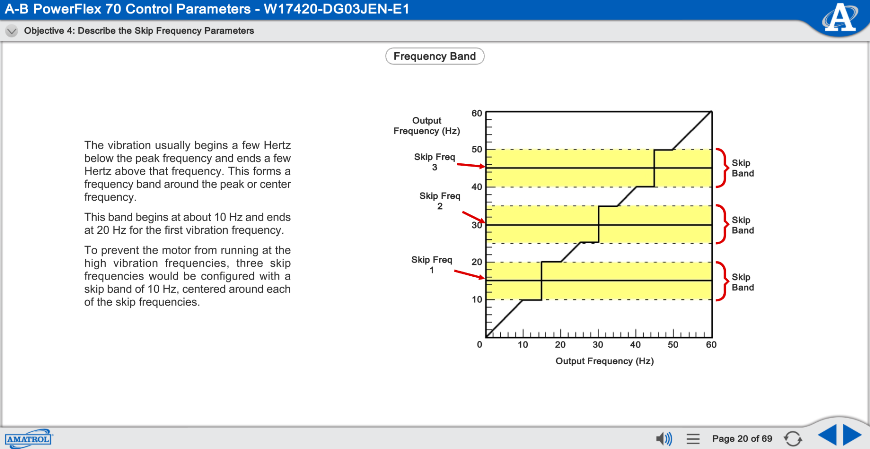

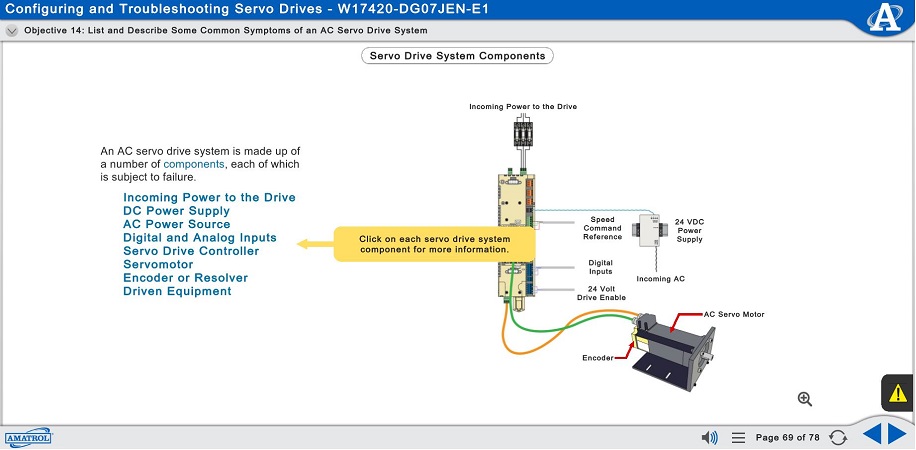

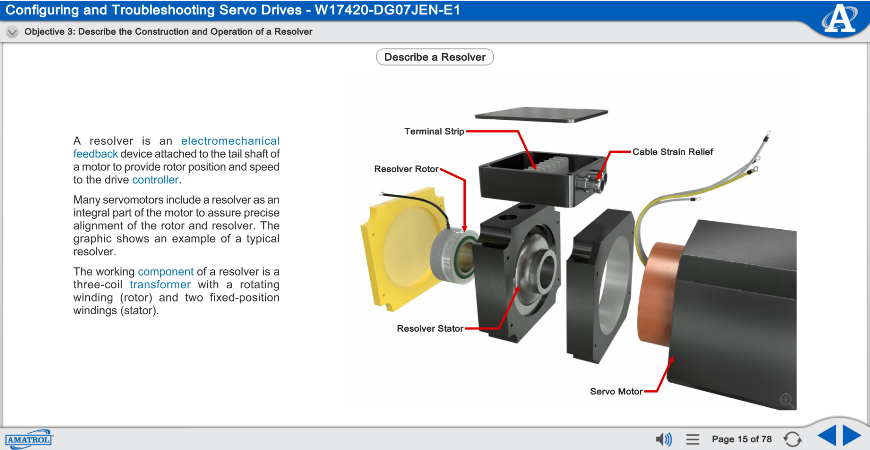

Amatrol AC Electronic Drive eLearning screenshots
Amatrol AC Electronic Drive eLearning screenshots
Amatrol AC Electronic Drive eLearning screenshots
Amatrol AC Electronic Drive eLearning screenshots
AC Drive Training Student Manual Cover

The AC Electronic Drive Learning System – AB PowerFlex 755 (970-DRV1F) provides comprehensive, hands-on training for AC variable frequency drives (VFDs) using real industrial hardware. Designed for advanced technical education and industrial workforce development, this system prepares learners to install, configure, program, communicate with, and troubleshoot modern AC electronic motor drive systems used throughout manufacturing.

Built around the PowerFlex 755 VFD, the 970-DRV1F mirrors real-world applications such as conveyors, CNC machines, robotics, mixers, and presses. Learners gain practical experience controlling motor speed, torque, and acceleration while working with industrial-grade components, professional software tools, and realistic fault scenarios.

Spanish eLearning Available.

  • Introduction to AC Variable Frequency Drives
  • VFD Safety and Best Practices
  • Motor Power and Feedback Wiring
  • VFD Architecture and Operation
  • HIM Basics and Drive Control
  • Drive Faults, Alarms, and Diagnostics
  • Drive Configuration using the HIM
  • Discrete and Analog I/O Control
  • Acceleration and Deceleration Control
  • Sensorless Vector and Flux Vector Control Modes
  • Drive Communications
  • Connected Components Workbench Drive Programming
  • Studio 5000 Drive Integration and Programming
  • Basic Drive Testing Procedures
  • Drive Systems Troubleshooting

The 970-DRV1F develops real-world troubleshooting expertise using Amatrol’s exclusive FaultPro computer-based fault insertion system. Instructors can introduce dozens of realistic electrical, motor, and feedback faults while the system is running, forcing learners to diagnose problems under true operating conditions.

  • Power loss and phase imbalance faults
  • Motor overload and excessive load conditions
  • Encoder loss and feedback errors
  • Over-current and drive protection faults
  • Control wiring and I/O-related faults

This AC electronic drive trainer features a rugged, transportable design suitable for labs, classrooms, and mobile training environments. The system includes dedicated operator and VFD panels that place controls, indicators, and test points within easy reach.

  • PowerFlex 755 VFD with V/Hz, Sensorless Vector, and Flux Vector control
  • Three-phase industrial motor
  • Dual-channel incremental encoder
  • Human Interface Module (HIM) programming module
  • High-voltage test points and motor/encoder connections
  • Printed VFD internal circuit board reference diagram

Learners gain experience with professional programming environments used across industry. Using the PowerFlex 755’s embedded Ethernet port, students configure and monitor drives over EtherNet/IP networks while working with industry-standard drive and automation software.

  • Drive configuration and parameter management
  • EtherNet/IP communications and diagnostics
  • PLC-based drive integration
  • Project-based drive programming exercises

Amatrol’s multimedia eLearning blends theory with hands-on application using 3D animations, videos, voice-guided instruction, and interactive assessments. The curriculum scaffolds learning from foundational VFD concepts through advanced drive systems troubleshooting.

  • Highly interactive lessons with 3D visuals
  • Dozens of guided hands-on skill activities
  • Integrated quizzes and knowledge checks
  • Supports self-paced and instructor-led training

Amatrol eLearning includes a free, web-based Learning Management System that simplifies course delivery and assessment. Accessible through any WebGL-compatible browser, the LMS supports flexible learning for both education and industry environments.

  • Create and customize courses
  • Monitor student participation and progress
  • Pre- and post-training assessments
  • Self-paced review and reinforcement
