MOD-WELD Single Station Fixed Table

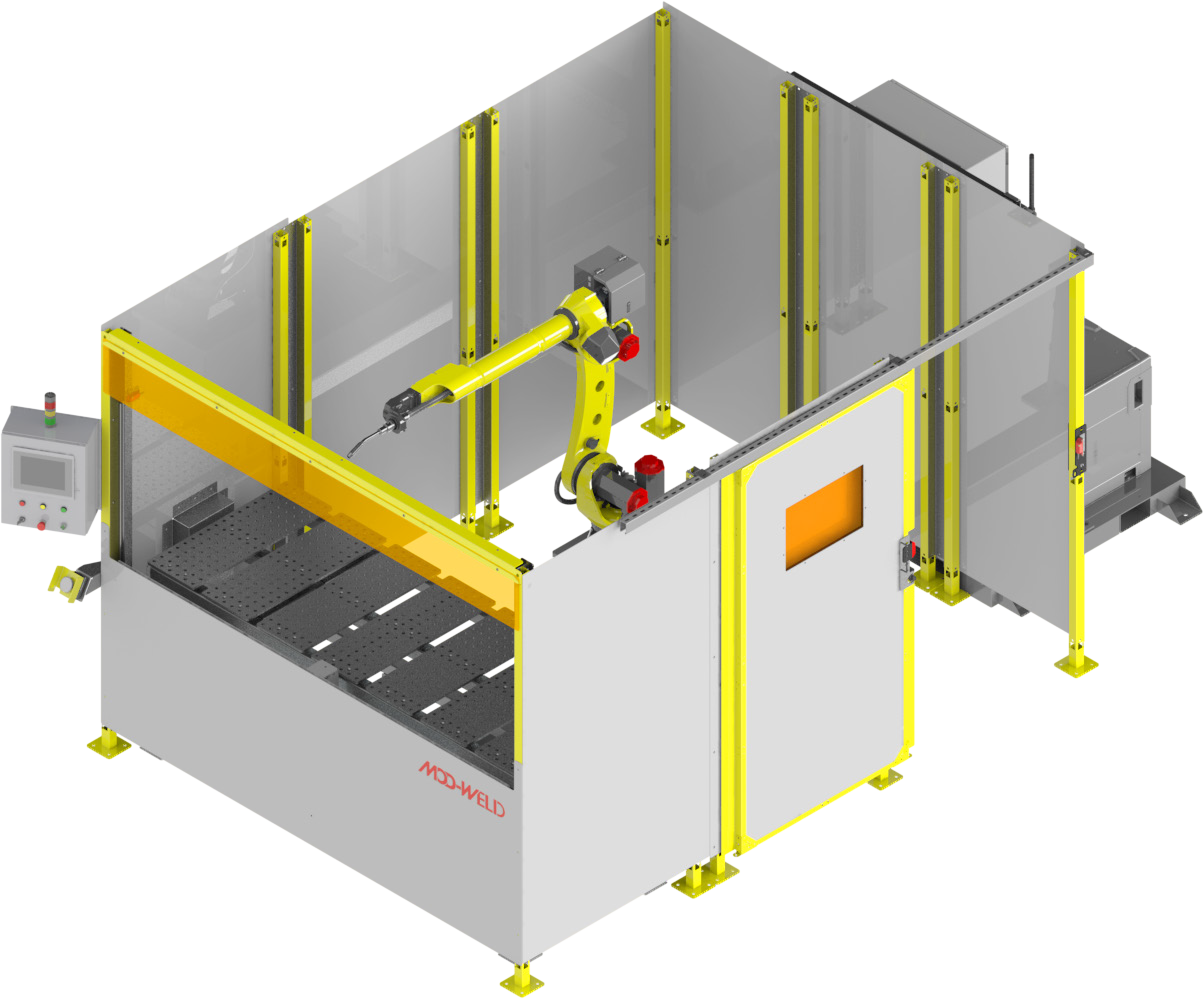

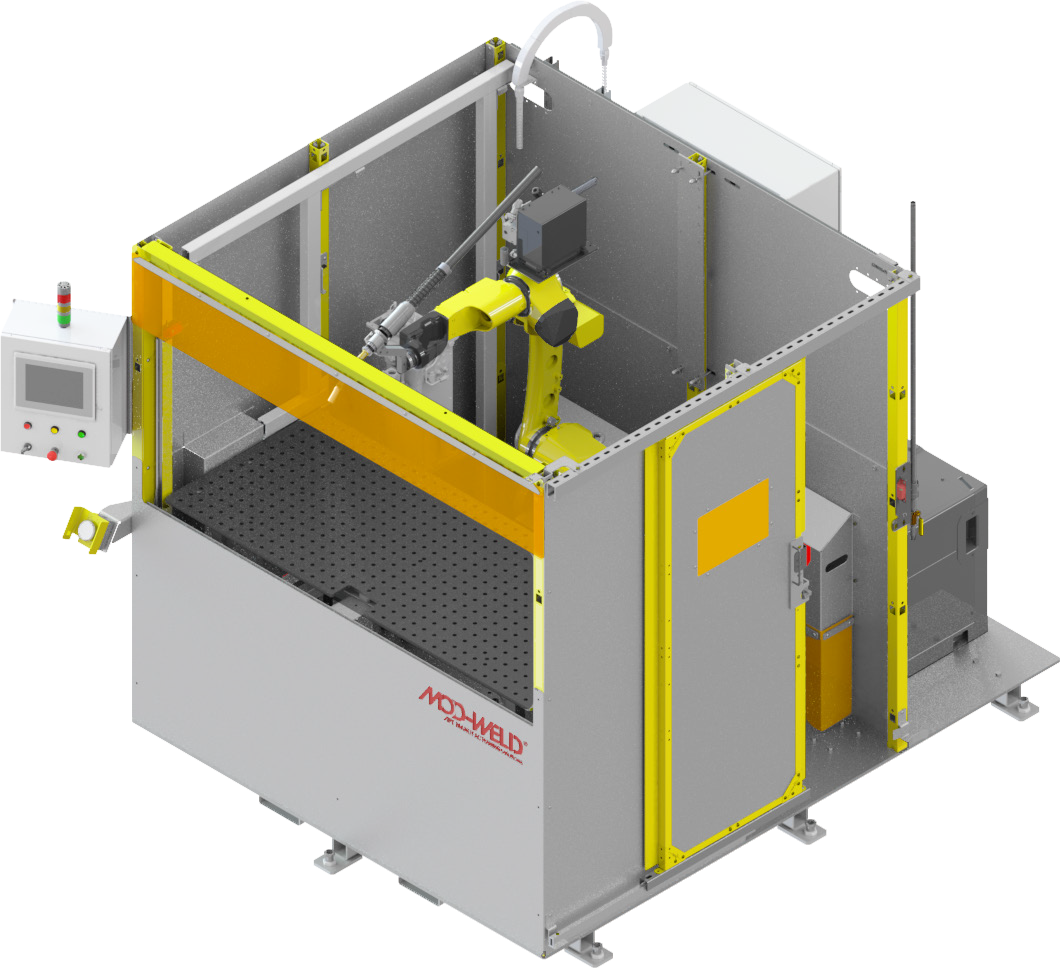

SSFWT-48-AM50 / SSFWT-72-AM100 / SSFWT-96-AM120
The MOD-WELD® Single Station Fixed Table from APT Manufacturing Solutions provides a straightforward robotic welding cell for foundational training and controlled production workflows. This configuration allows parts to be loaded directly into a fixture while the robot waits in a safe position before welding begins.
For education and workforce training programs, the Single Station Fixed Table is an approachable way to introduce industrial robotic welding. Students can focus on core concepts such as robot operation, fixture setup, part repeatability, weld sequencing, and safe cell workflow.
This system is a strong choice for programs that want a structured first step into FANUC ARC Mate robotic welding while maintaining a clear, manageable workflow.
- Best for foundational robotic welding training in a controlled environment.
- Simple workflow makes it easier for students and instructors to understand system operation.
- Strong fit for fixture setup and repeatability instruction.
- Ideal entry point for programs adding industrial robotic welding.
The Single Station Fixed Table is often used for foundational instruction, where clear process control, consistency, and ease of understanding are especially valuable.
- Fronius TPS/i: Introduces students to advanced welding process control and automated weld quality.
- Miller Auto-Continuum™: Provides stable, consistent arc performance for learning repeatable robotic welding.
- Fronius LSC: Helps students understand how process control can reduce spatter and improve weld quality.
- Fronius CMT: Introduces advanced process capabilities for specialized materials and applications.
- FANUC TPW: Introduces adaptive robotic welding concepts such as touch sensing and seam tracking.
- Tip reamer, nozzle spray, and wire snip system
- Additional Allen-Bradley I/O
- Laser seam finding and tracking
- FANUC iRVision for 2D and 3D part location
- Additional closed-center valve options
- Exhaust hood options available in select sizes
| System Model | SSFWT-48-AM50 | SSFWT-72-AM100 | SSFWT-96-AM120 |
| 6-Axis Robot | ARC Mate 50iD | ARC Mate 100iD | ARC Mate 120iD |
| Robot Reach | 36" | 57" | 72" |
| Cell Footprint | 60" x 90" | 84" x 102" | 108" x 114" |
| Table Work Space | 24" x 48" | 36" x 72" | 48" x 96" |
| Available I/O | 8 in / 8 out | ||
| Valve Bank Space | (4) closed center / (4) blanks | ||
| Operator Interface | Rockwell PLC/HMI Interface | ||
| Table Hole Size | 16mm diameter, 2" x 2" hole pattern | ||
Looking for a controlled entry point into industrial robotic welding? Tech-Labs can help determine whether the Single Station Fixed Table is the right starting point.
