MOD-WELD Dual Station Rotary Table

DSRT-48-AM50 / DSRT-72-AM100 / DSRT-96-AM120

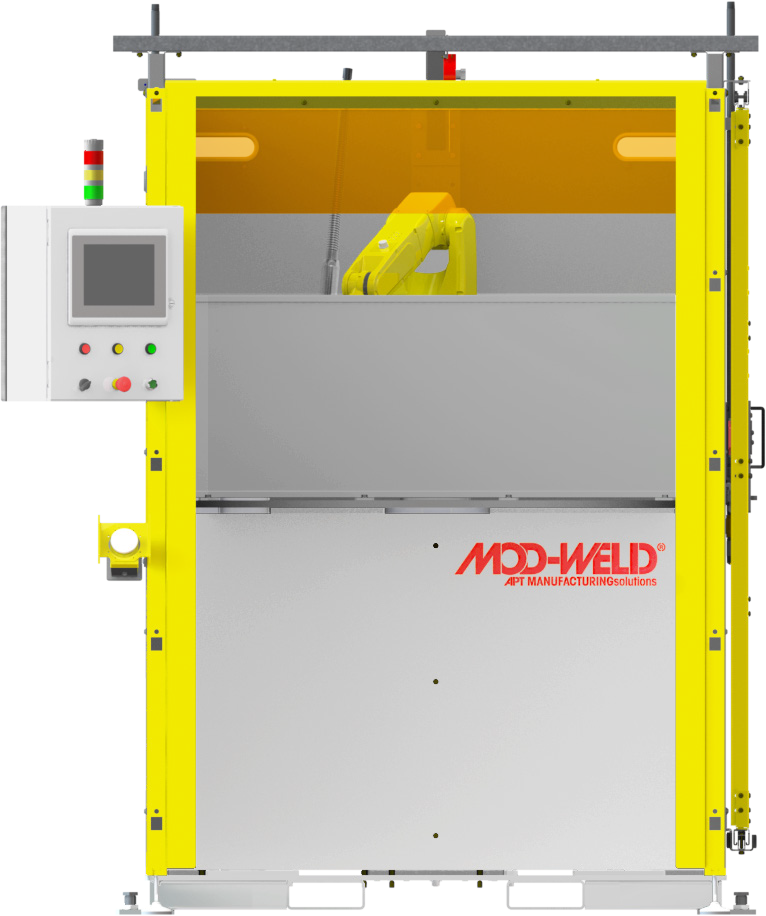

MOD-WELD Dual Station Rotary Table robotic welding cell front view with FANUC ARC Mate 50iD

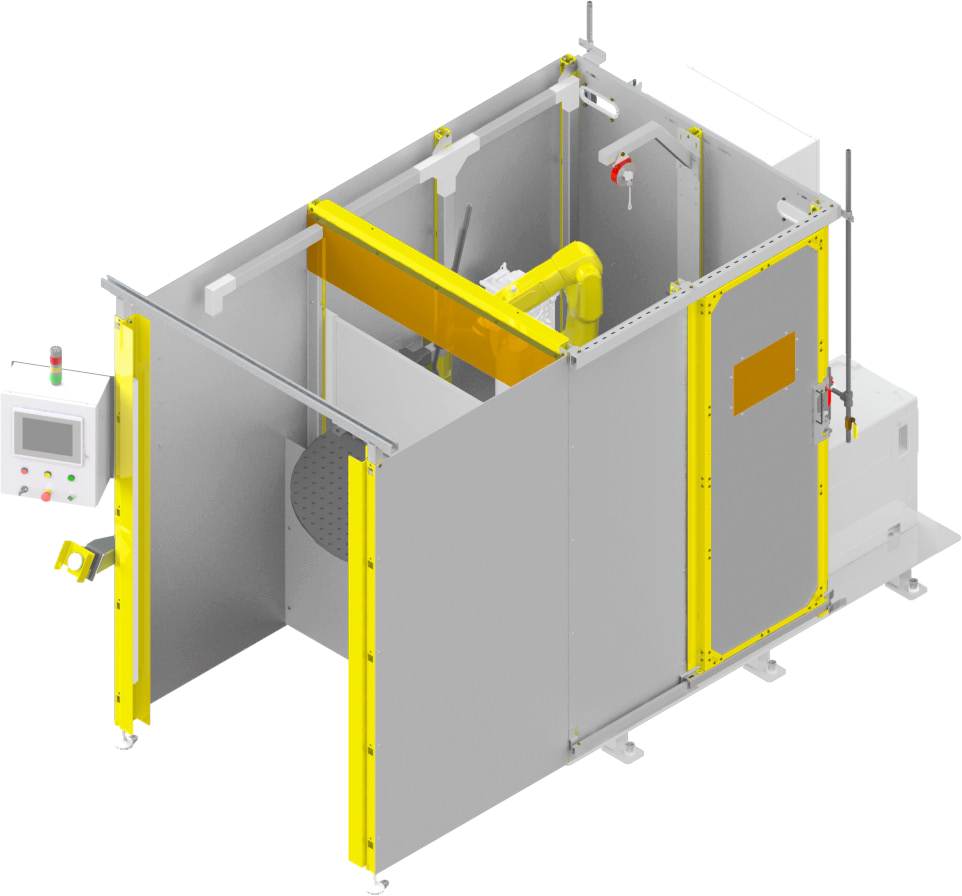

Top view of MOD-WELD Dual Station Rotary Table weld cell with FANUC ARC Mate 50iD
MOD-WELD Dual Station Rotary Table robotic welding cell front view with FANUC ARC Mate 100iD
Top view of MOD-WELD Dual Station Rotary Table weld cell with FANUC ARC Mate 100iD

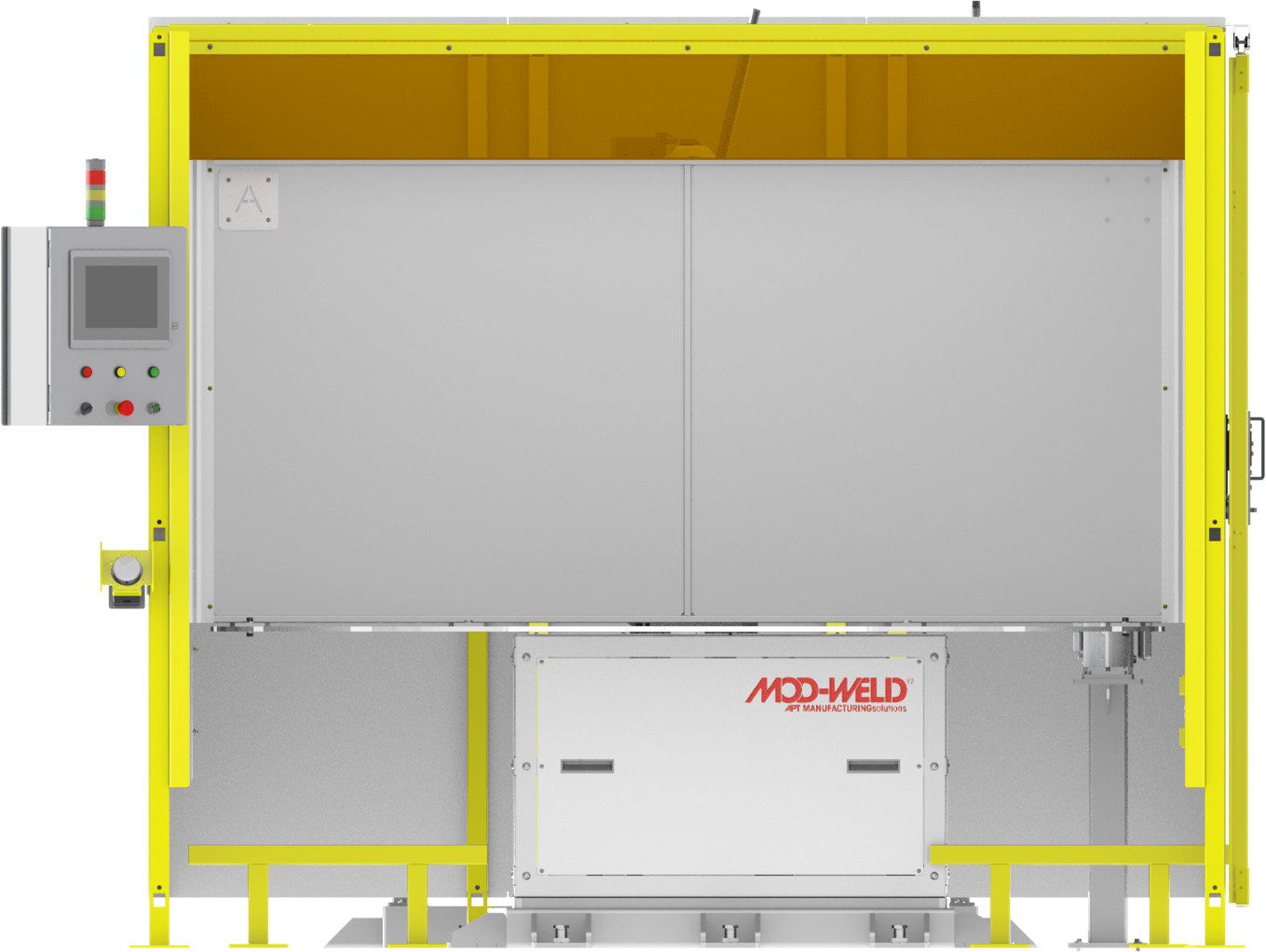

MOD-WELD Dual Station Rotary Table robotic welding cell front view with FANUC ARC Mate 120iD

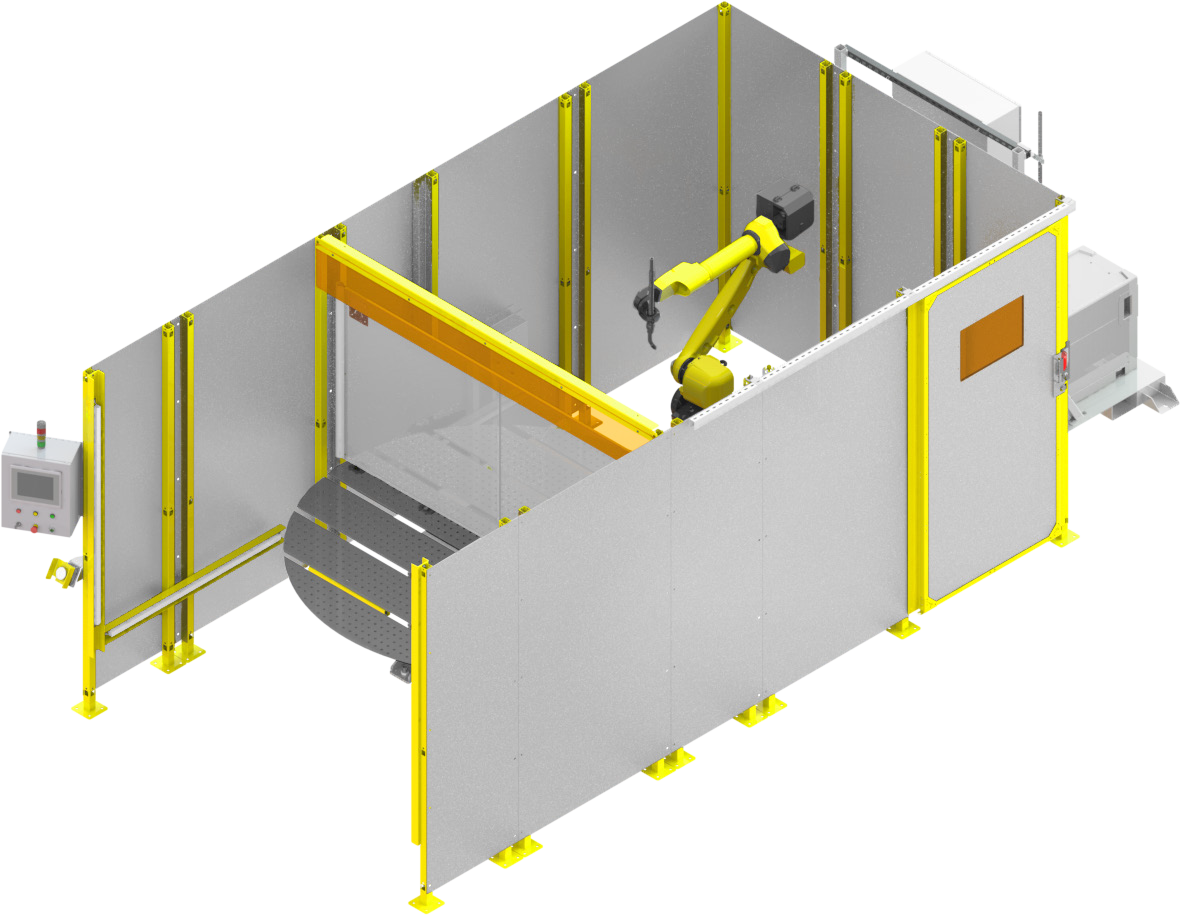

Top view of MOD-WELD Dual Station Rotary Table weld cell with FANUC ARC Mate 120iD

The MOD-WELD® Dual Station Rotary Table from APT Manufacturing Solutions is designed to improve robotic welding efficiency by allowing parts to be loaded and unloaded outside the weld cell while the robot works inside the enclosure.

This configuration is ideal for teaching production workflow, cycle time, and throughput optimization. Students can clearly see how automation reduces downtime by keeping the robot welding while the next part is prepared.

The Rotary Table system is a strong fit for schools, colleges, workforce programs, and industrial training centers that want a practical bridge between foundational robotic welding and production-focused automation.

  • Best for demonstrating throughput and reduced idle time.
  • Allows loading outside the weld cell while the robot continues welding.
  • Strong balance of simplicity and productivity for training and production environments.
  • Ideal for programs teaching cycle time, workflow, and automation efficiency.

The Rotary Table system is designed for repeated cycles, where weld consistency and efficient process control are important to overall throughput.

  • Fronius TPS/i: Supports precise control for consistent automated welding across repeated part cycles.
  • Miller Auto-Continuum™: Provides dependable arc performance for production-style robotic welding.
  • Fronius LSC: Helps reduce spatter and cleanup time between cycles.
  • Fronius CMT: Supports advanced process instruction and high-quality weld applications.
  • FANUC TPW: Supports touch sensing and seam tracking for repeated part runs and weld consistency.
  • Tip reamer, nozzle spray, and wire snip system
  • Additional Allen-Bradley I/O
  • Laser seam finding and tracking
  • FANUC iRVision for 2D and 3D part location
  • Additional closed-center valve options
  • Exhaust hood options available in select sizes
System ModelDSRT-48-AM50DSRT-72-AM100DSRT-96-AM120
6-Axis RobotARC Mate 50iDARC Mate 100iDARC Mate 120iD
Robot Reach36"57"72"
Cell Footprint60" x 90"84" x 102"108" x 114"
Table Work Space15" x 42"27" x 66"39" x 90"
Available I/O8 in / 8 out
Valve Bank Space(4) closed center / (4) blanks
Operator InterfaceRockwell PLC/HMI Interface
Table Hole Size16mm diameter, 2" x 2" hole pattern

Need a system that clearly demonstrates production efficiency? Tech-Labs can help determine whether the Rotary Table is the best fit for your program or facility.
